Description

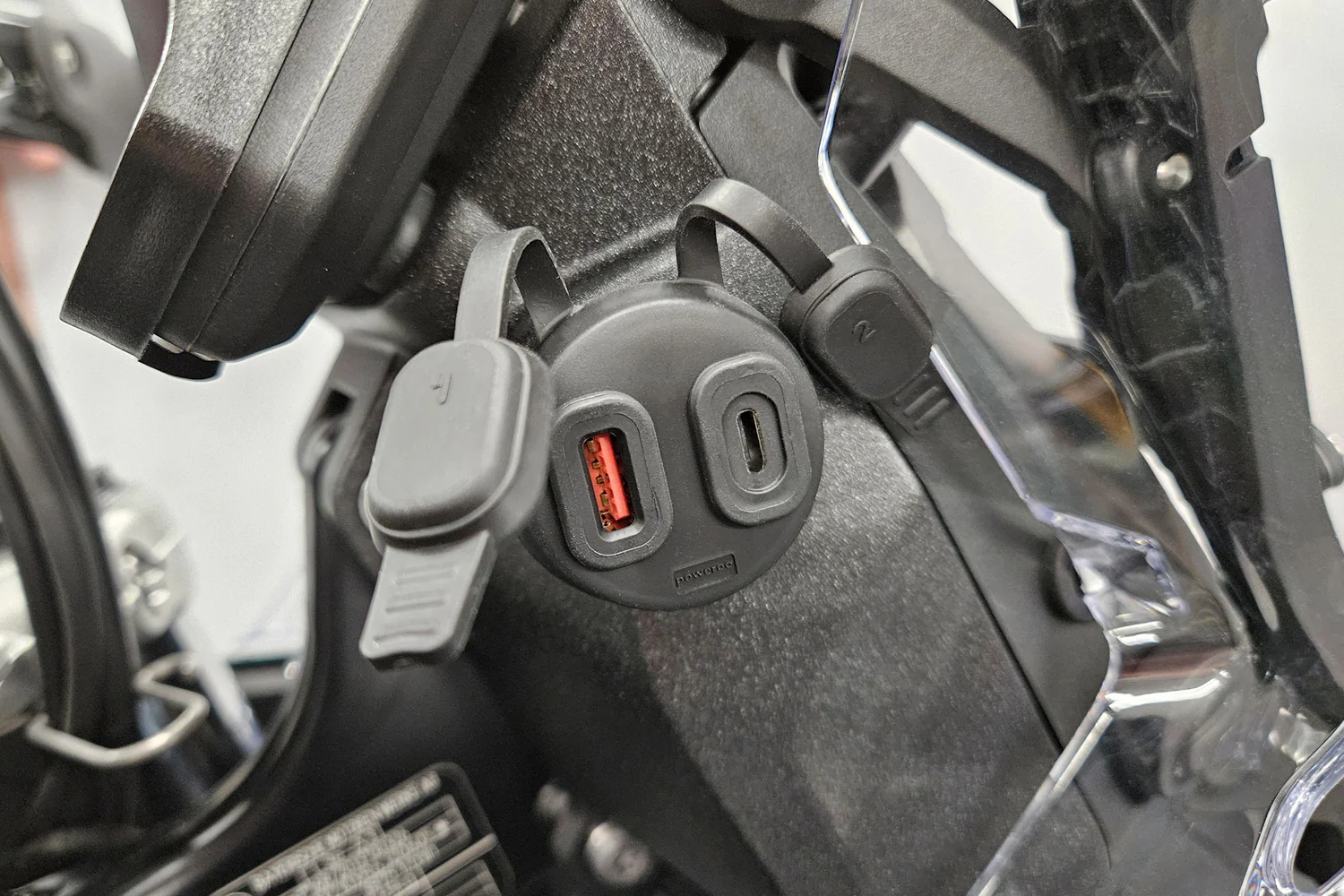

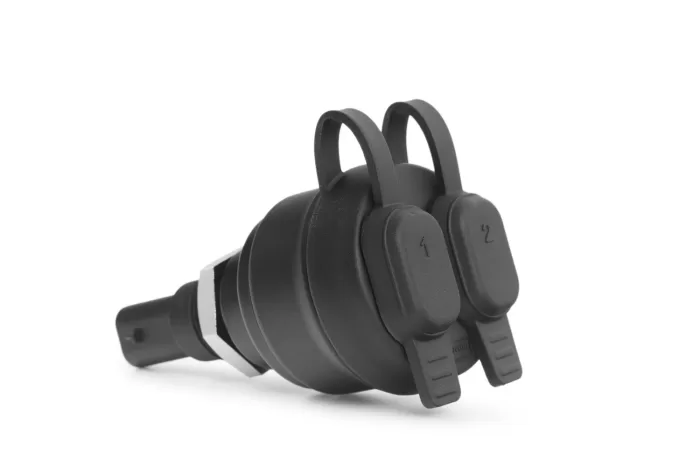

The USB dual socket is designed to replace the original BMW DIN socket. It also does away with wobbly adapters. The socket installs in the same position and using the original connector. This means no soldering or cabling of a new line are required.

Function and Product Features

  • Plug & Play System
  • Replaces the original BMW DIN or USB socket
  • USB socket features both a USB and a USB-C connection
  • Suitable for connecting smartphones, tablets, cameras, and navigation devices
  • No need for additional USB adapters
  • Dust and rain protection caps for USB / USB-C sockets
  • CAN bus compatible
  • Intelligent device detection
  • Protection against short-circuit, overheating, and overvoltage integrated

Technical Specifications

  • Input: 8 to 30 Volts DC

Supports the following fast charging protocols:

  • USB-C Port Only: USB PD3.0/PD2.0/PPS for Apple fast charging requires an Apple Lightning-to-USB-C cable.
  • Both Ports: Qualcomm Quick Charge QC4+/QC4/QC3.0/QC2.0, Samsung AFC, Huawei FCP and SCP, MediaTek PE2.0/PE1.1, Spreadtrum SFCP, OPPO VOOC.
  • Other: BC1.2, Apple 2.4A
